Drag Polar

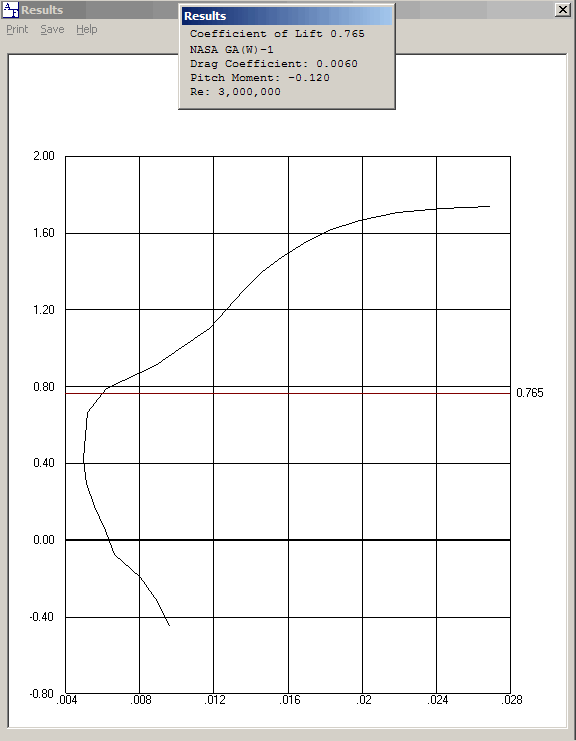

The horizontal axis is the airfoil's drag coefficient and the vertical axis is the lift coefficient.

This display is only available if the viscous calculations have been performed.

Values at discreet angles of attack may be examined by clicking the left mouse button and dragging the angle of attack line up or down.
