Surface Velocity vs Chord

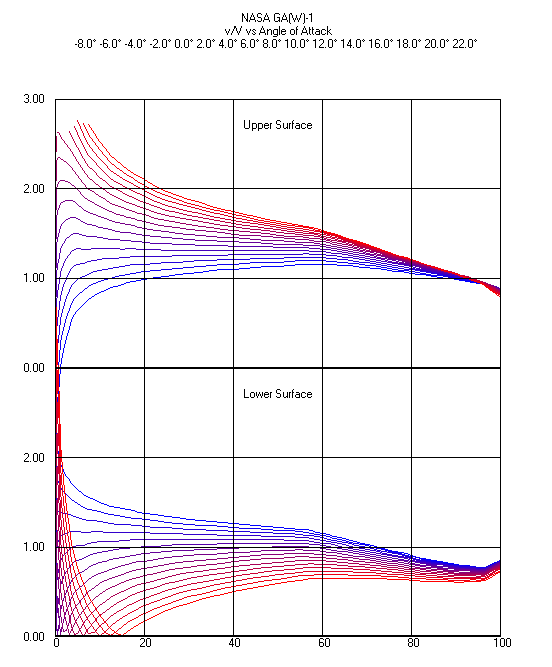

The horizontal axis is the airfoil chord in terms of percent x/c. The vertical axis is velocity in terms of surface velocity / free stream velocity. Red represents high angle of attack and blue represents low angle of attack.

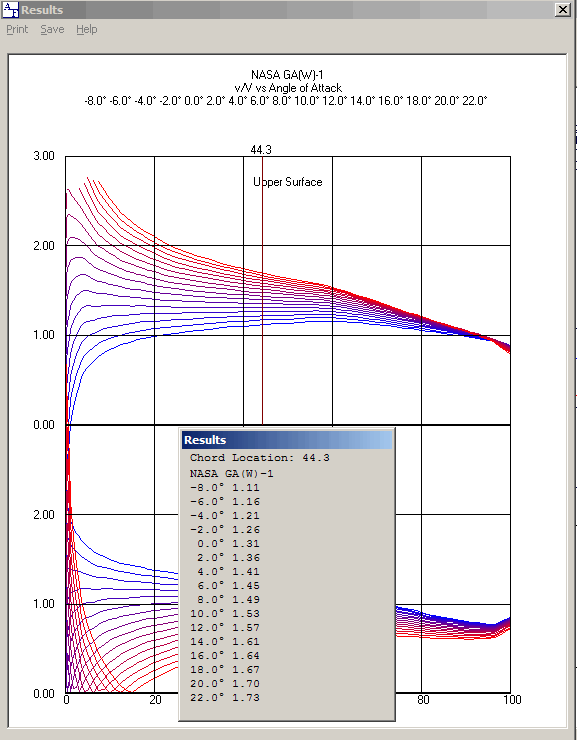

Values at discreet angles of attack may be examined by clicking the left mouse button and dragging the angle of attack line left or right.
